Product features
Description

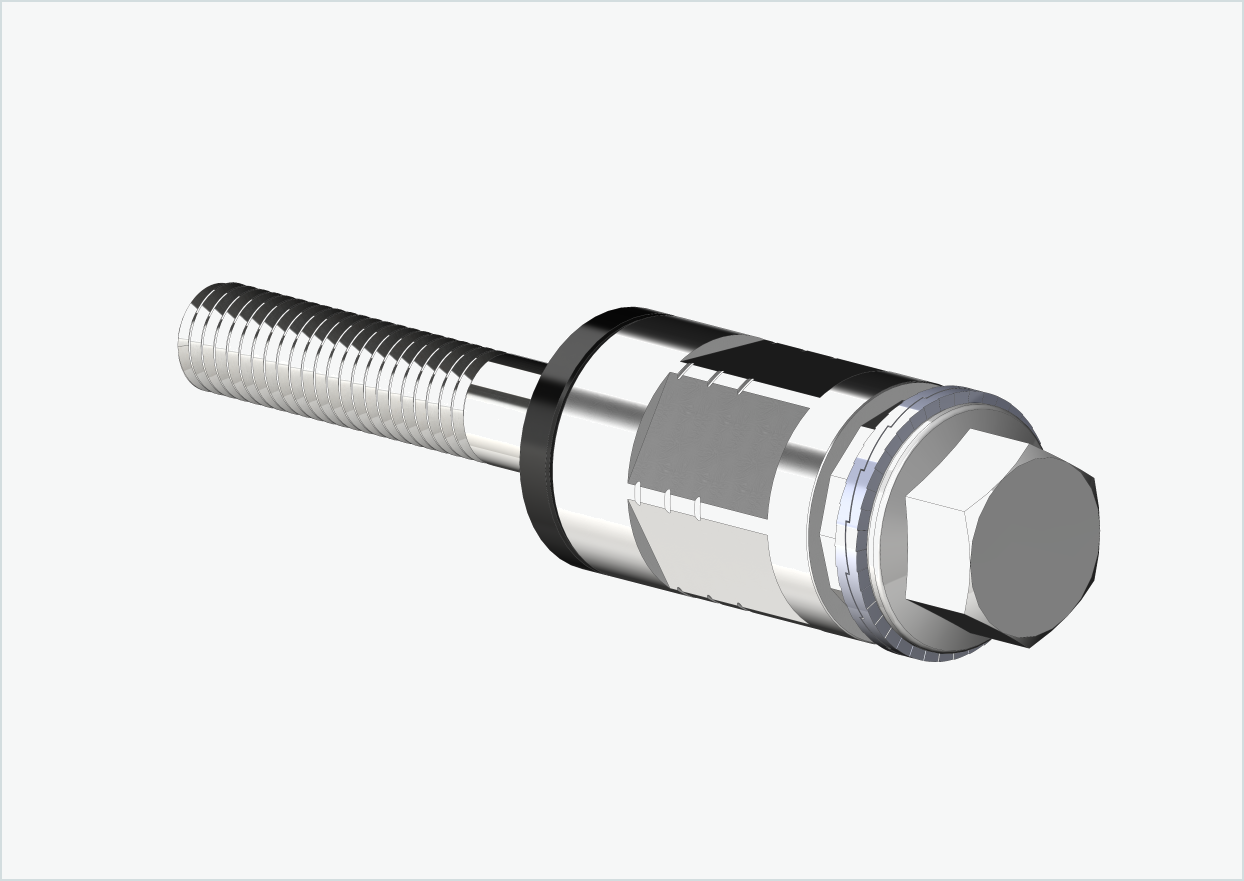

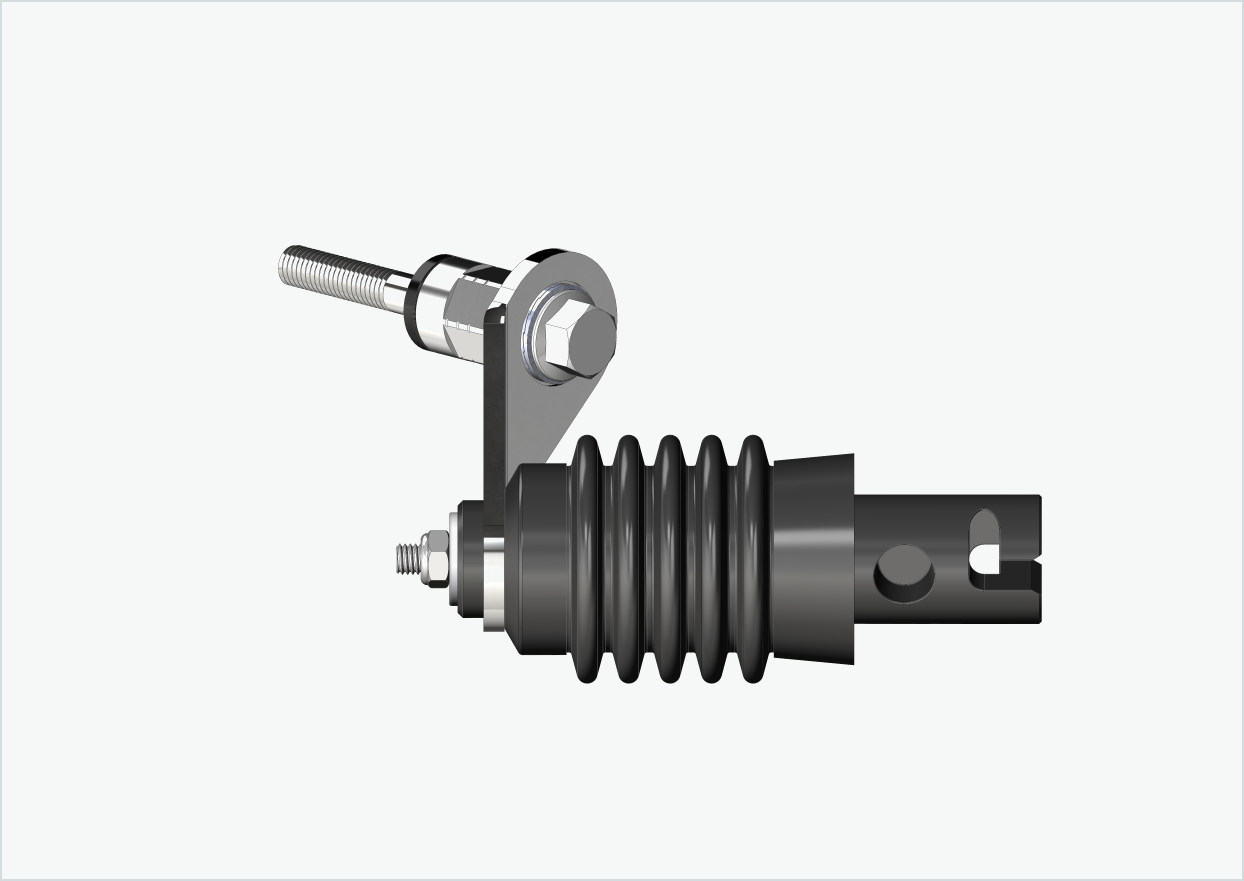

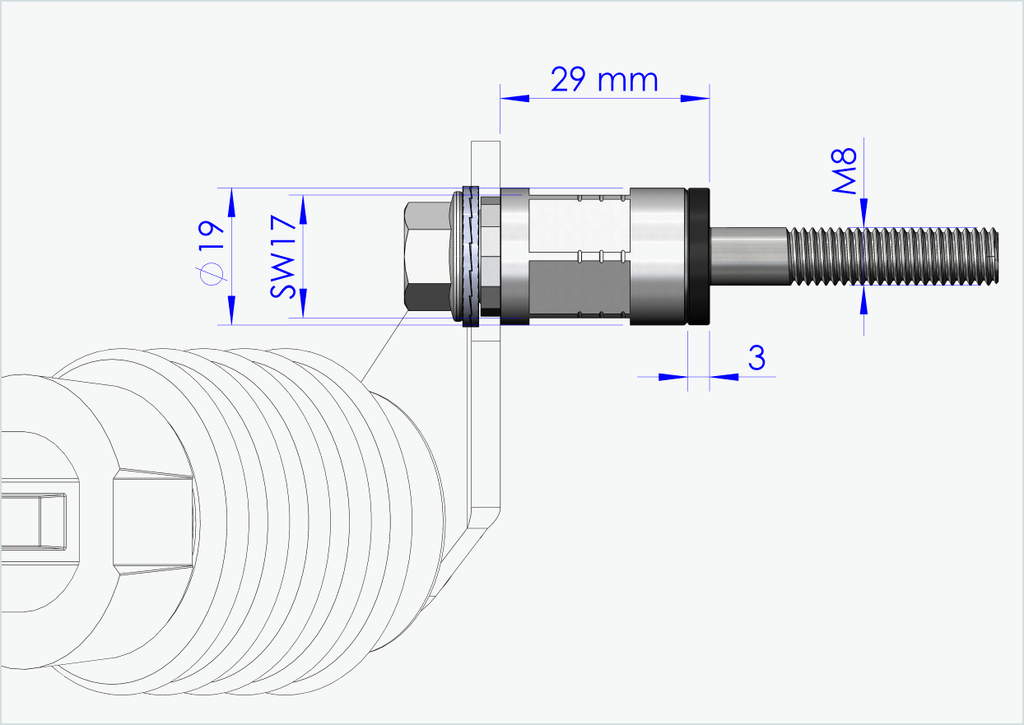

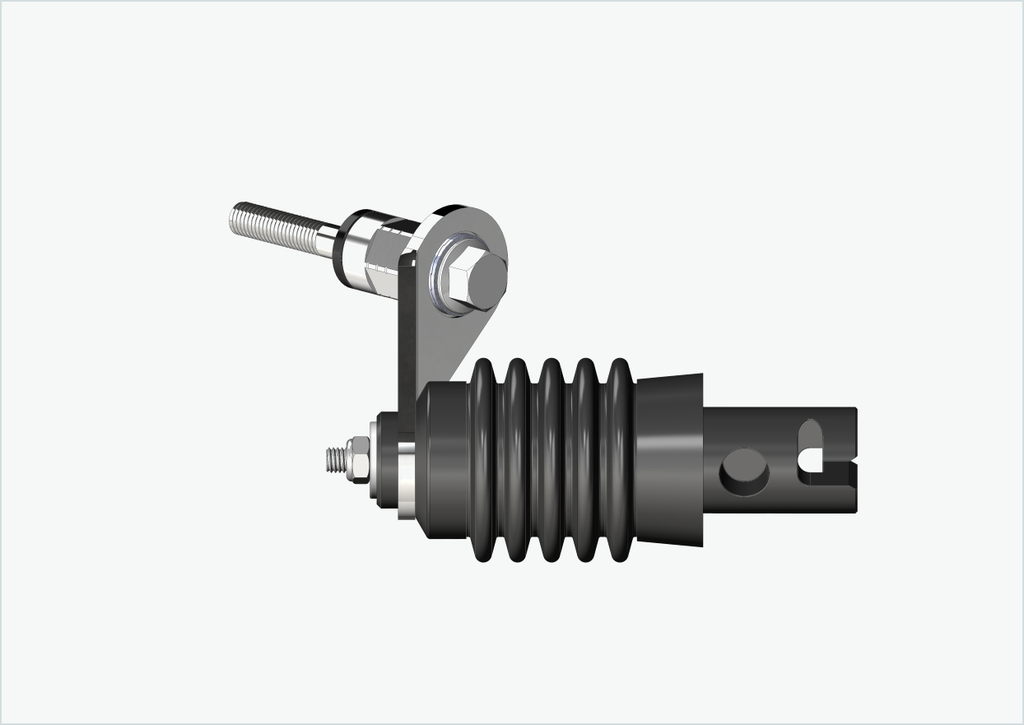

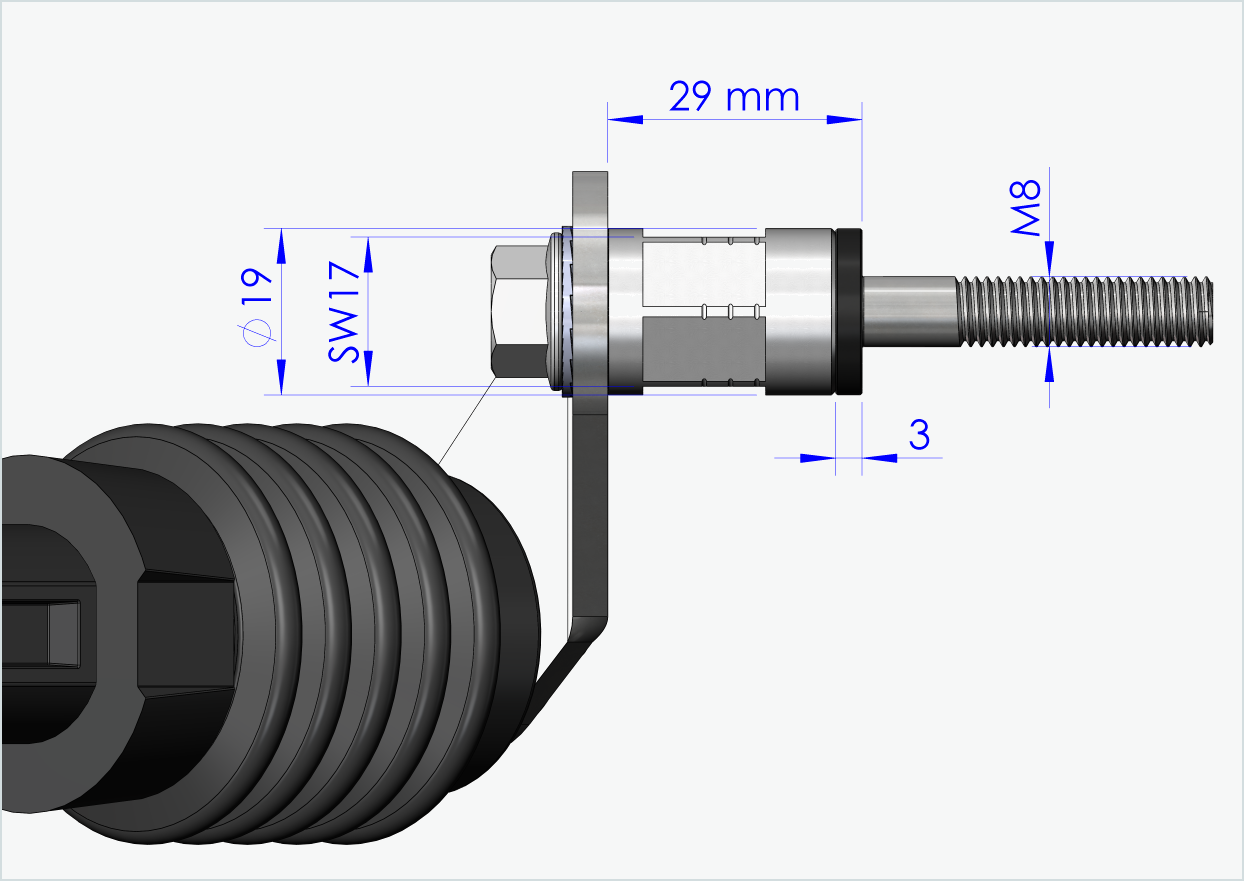

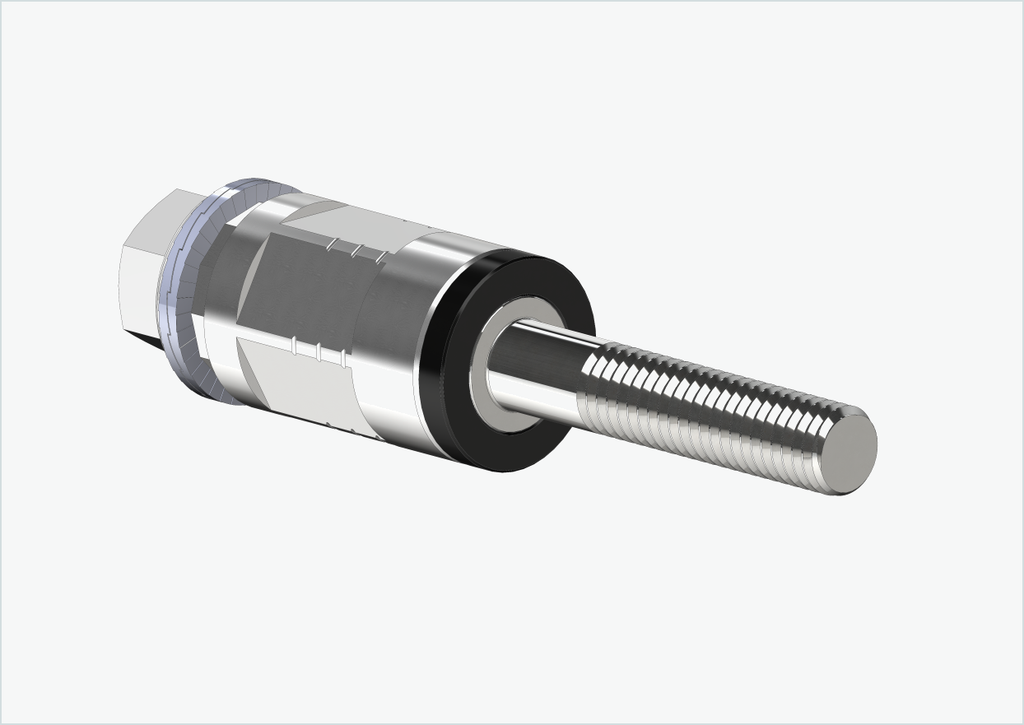

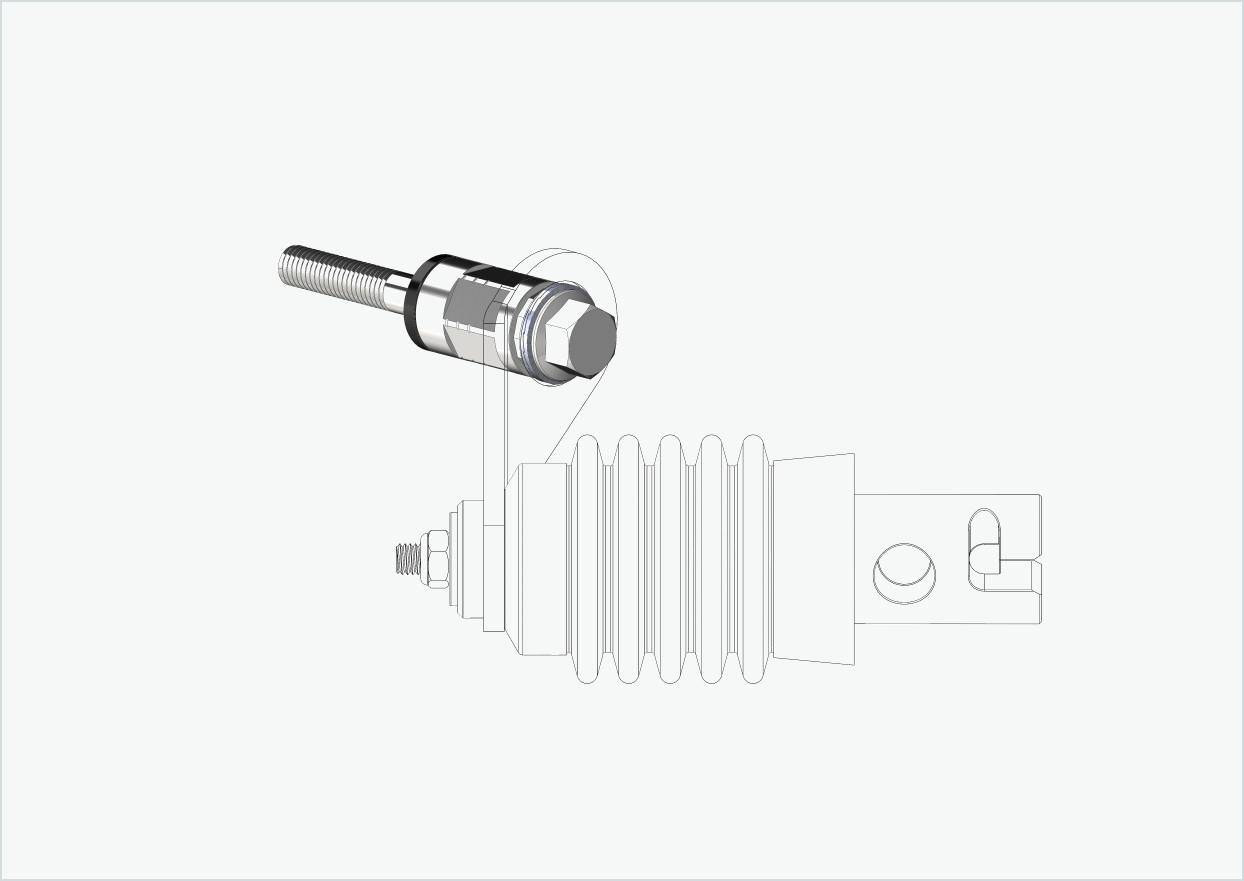

Polygon adapter for Enviolo modular gear hubs CY2024 - suitable for Weber couplings type: E - EL - ES

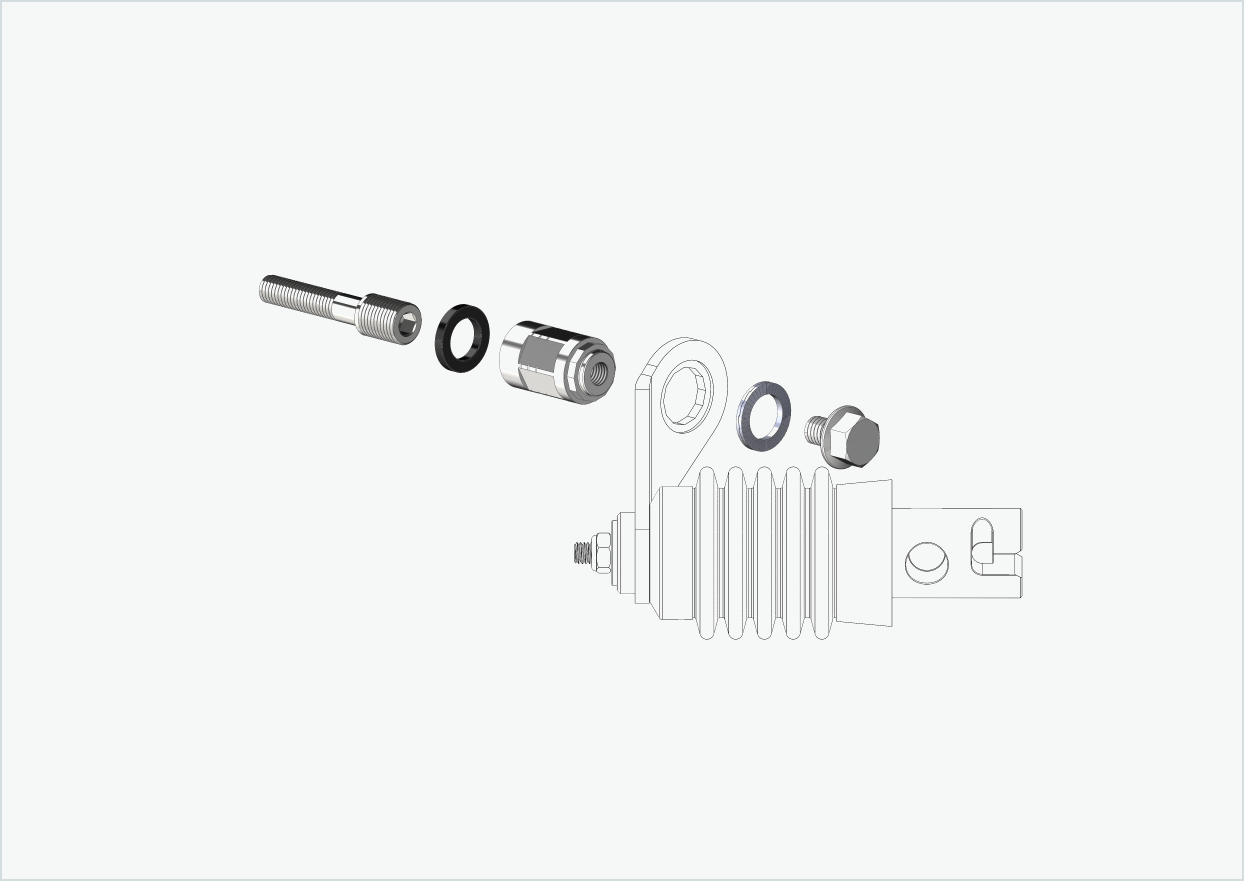

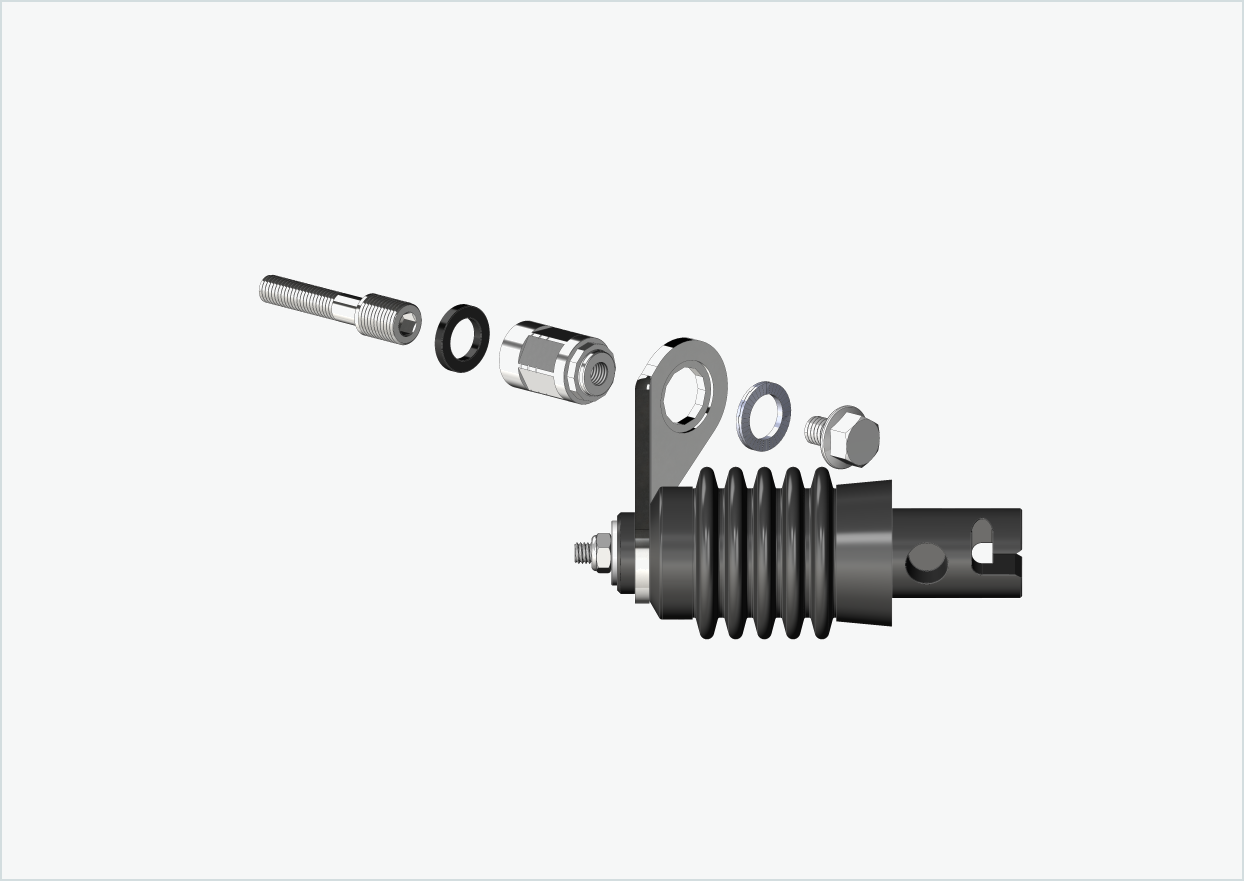

ASSEMBLY INSTRUCTIONS
Fits the following hub gear systems
ENVIOLO
- HD Heavy Duty Modular Hub CY2024 | CVP-HD-MA-32-DC-OE
- TR Trekking Modular Hub CY2024 | CVP-TR-MA-36-DC-OE
- EX Extreme Modular Hub CY2024 | CVP-EX-MA-36-DC-OE
- CT2 Modular City Hub CY2024 | CVP-CT2-MA-32-DC-OE
You should definitely bear this in mind:
The modular Enviolo modular gear hubs CY2024 have three different bolt types on the brake side (left).
- Pos. 1 | Special bolt Syntace | Enviolo Item no.: HW-MA-1PC-SYN-OE
- Pos. 2 | Special bolt standard | Enviolo Article no.: HW-MA-1PC-12TA-OE
- Item 4 | Cheese head screw M8x40 | Enviolo Article no.: HW-MA-SHS-M8X40-OE
If you have installed the special bolt item 1 in your left dropout, you will also need item 3 - Enviolo bushing Syntace | Enviolo article no.: HW-MA-SPCR-LHSYN-OE for the installation of our thread adapter.
If you have installed the special bolt pos. 2 in your left dropout, you will also need pos. 5 - Enviolo bushing standard | Enviolo article no.: HW-MA-SPCR-LH-OE for mounting our thread adapter.
Safety instructions and warnings
! WARNING !
The towing bike must be approved for towing a trailer. Riding the trailer with a towing bike that has not been approved by the manufacturer can lead to frame breakage or other material problems. This can result in accidents with life-threatening injuries.
If you are not sure how to install our adapter correctly, please contact a specialist workshop.
Our adapter must be fitted correctly. An incorrectly fitted adapter can come loose while riding and lead to accidents with life-threatening injuries.
You should definitely bear this in mind:
- Our adapters are only approved for bicycles and pedelecs (max. 25 km/h), not for S-pedelecs or e-bikes from 25 km/h!
- We would like to point out to all dealers and end users that they themselves are responsible for the entire bicycle trailer system and its correct functioning in terms of product liability!
- It is your responsibility to determine the correct thread size of your rear hub on your bike. Do not attempt to fit our adapter with a different thread size to your rear hub. An incorrect thread size can damage your bike. If you are unsure of the correct thread size, please contact us by email or phone and we will be happy to help you.
- cannot be used with bikes made of carbon or with carbon dropouts and carbon rear triangle!
- Regularly check the correct torque setting and that all components are free of play before using your bike in trailer mode!
- If you do not have a calibrated torque wrench for fitting our adapter, contact a specialist workshop.
