thru axle Syntace (X-12) with adapter Universal / M12 x 1.00

Savings 19%
Price:
€64,90 €79,90

incl. VAT plus shipping

Customized product

This product is made to measure for you based on the installation length you have selected. Please note the exclusion of the right of withdrawal for custom-made products.

Unsure about your choice? Contact us or send us a photo of your current thru axle!

Product features

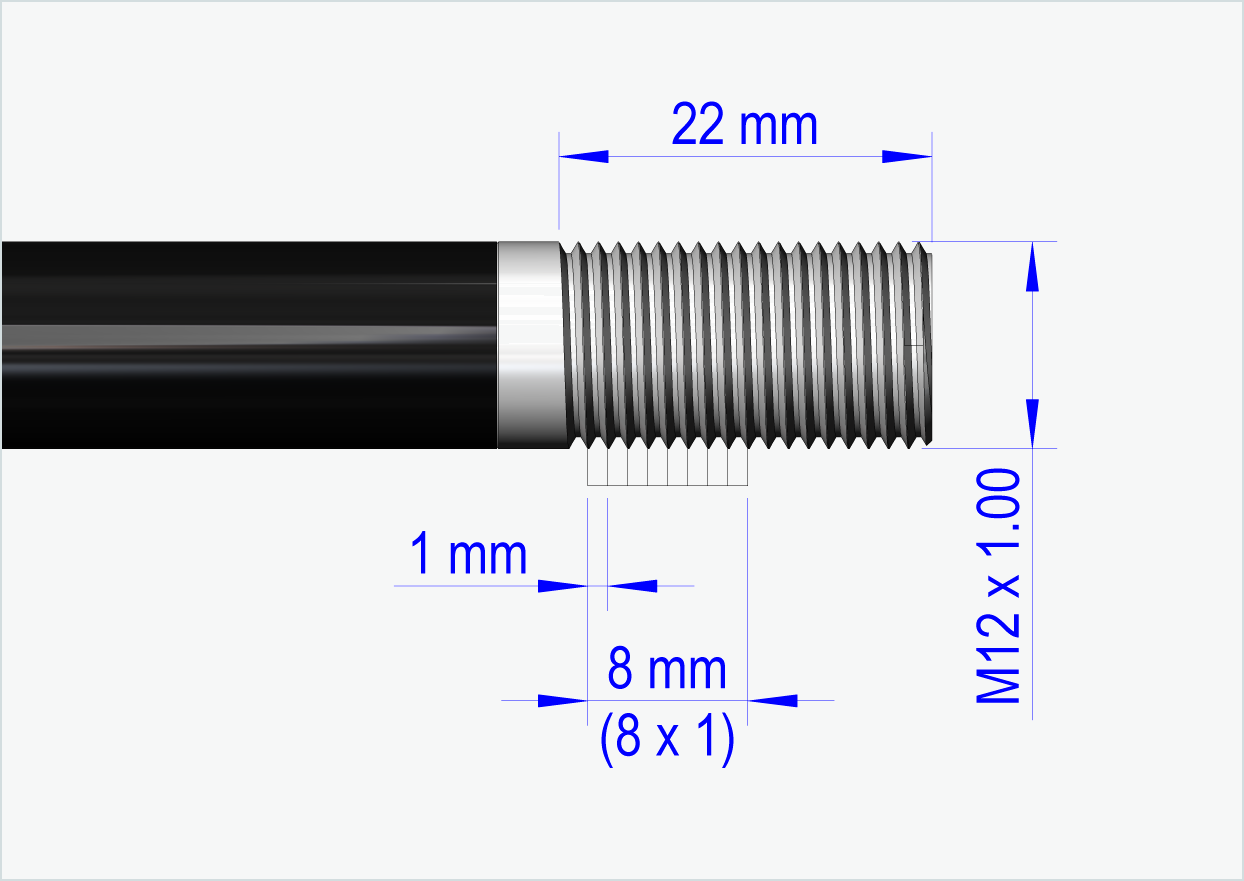

Thread size
M12 x 1.00
Material (adapter)
1.4305 (stainless steel)
Material (axle)
EN AW-7075 T6 (anodized aluminium)
Material (threaded bolt)
3.7165 (titanium grade 5) - M12 x 1.00
Item number
20-20-04-150-100_00

Description

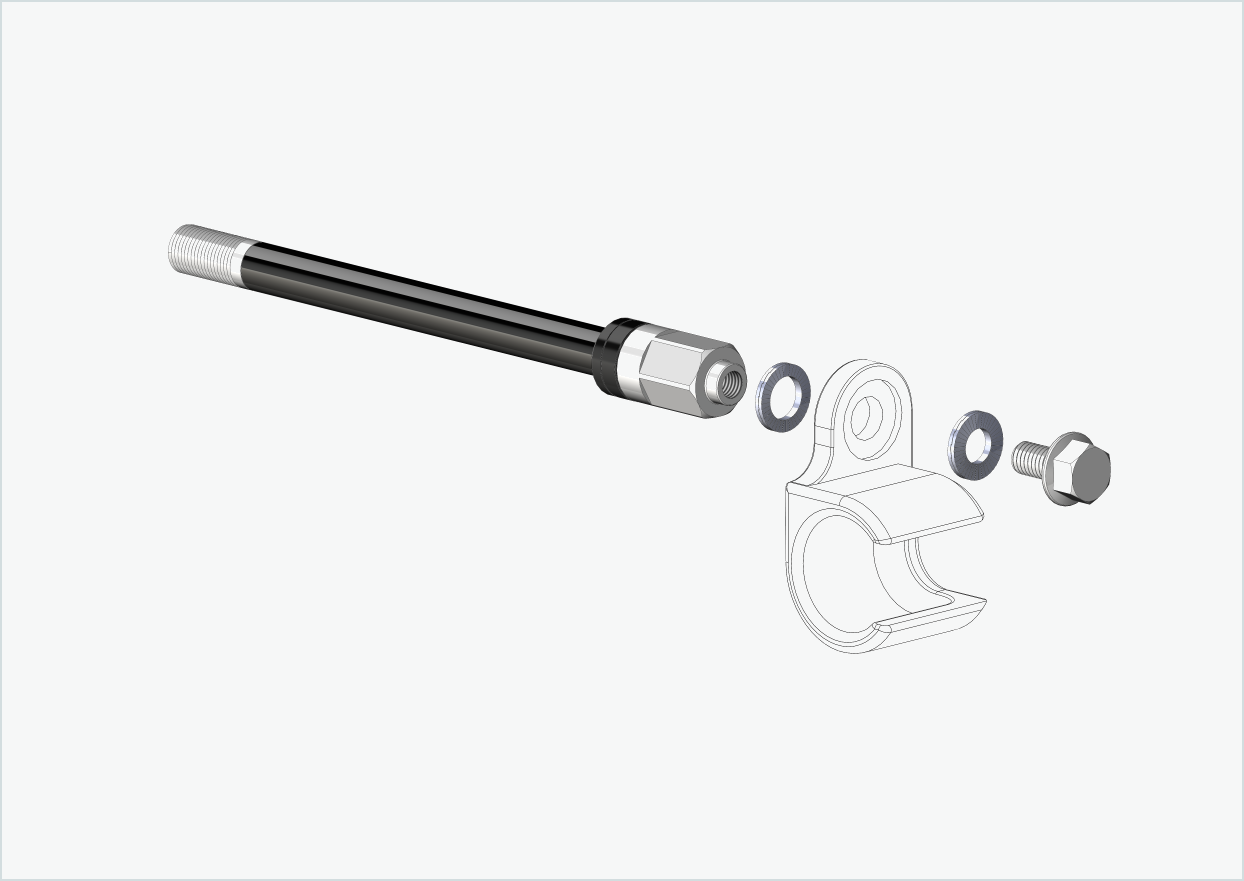

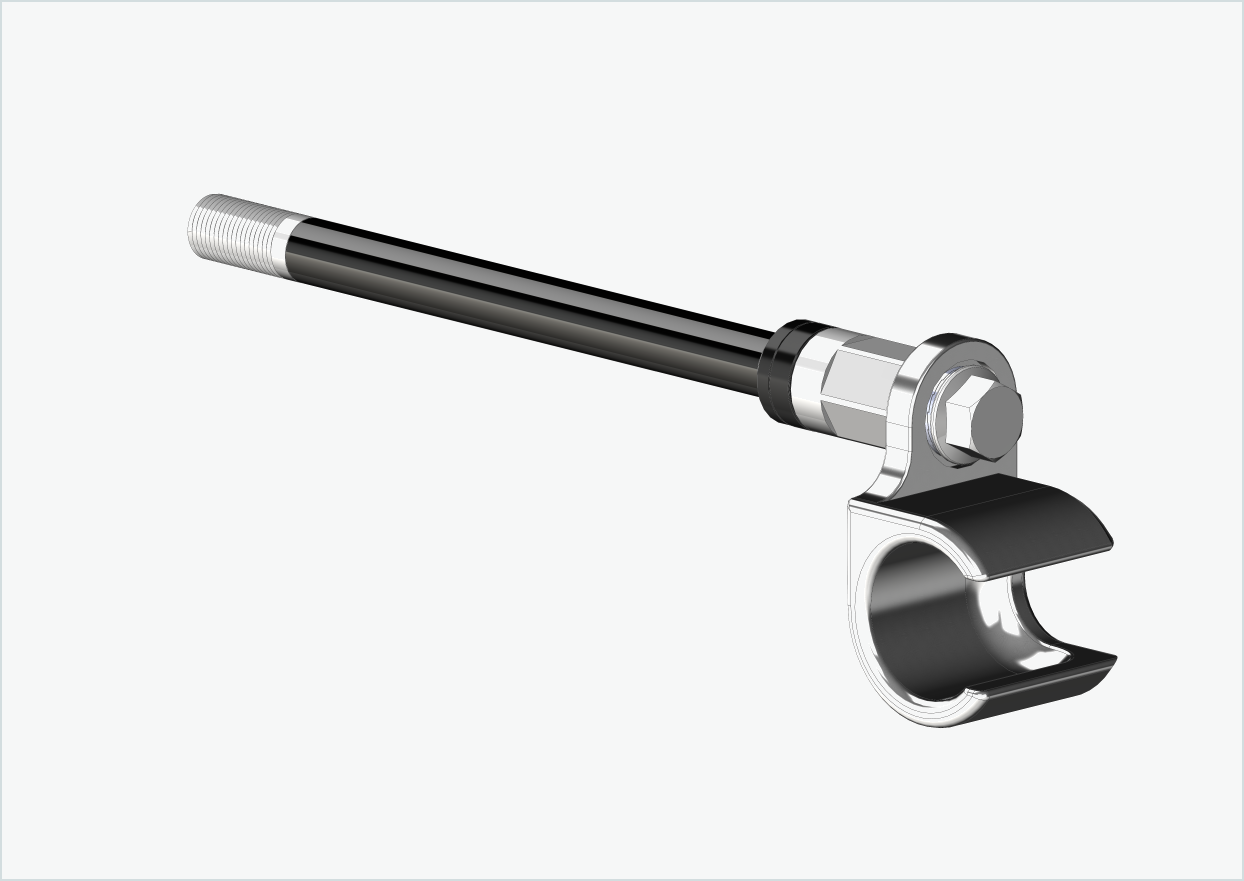

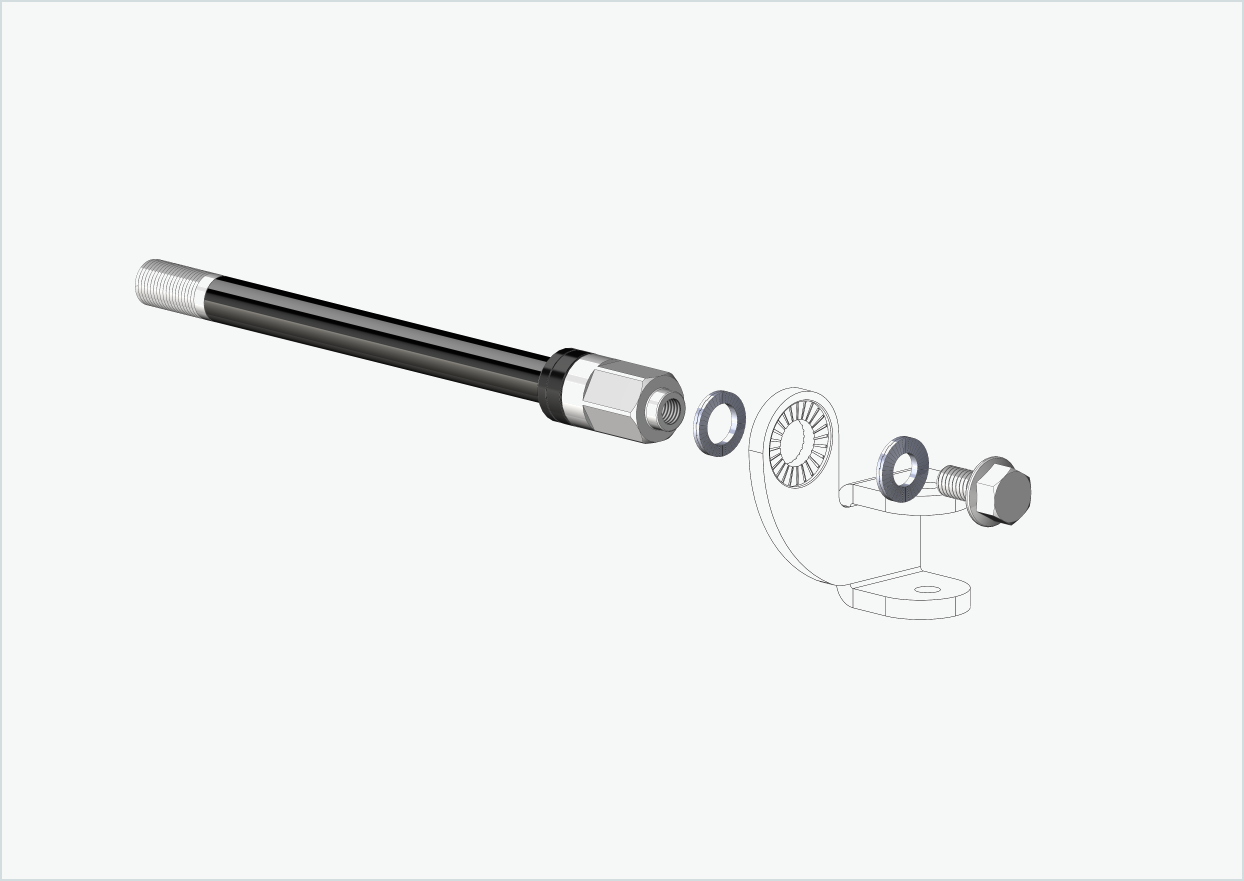

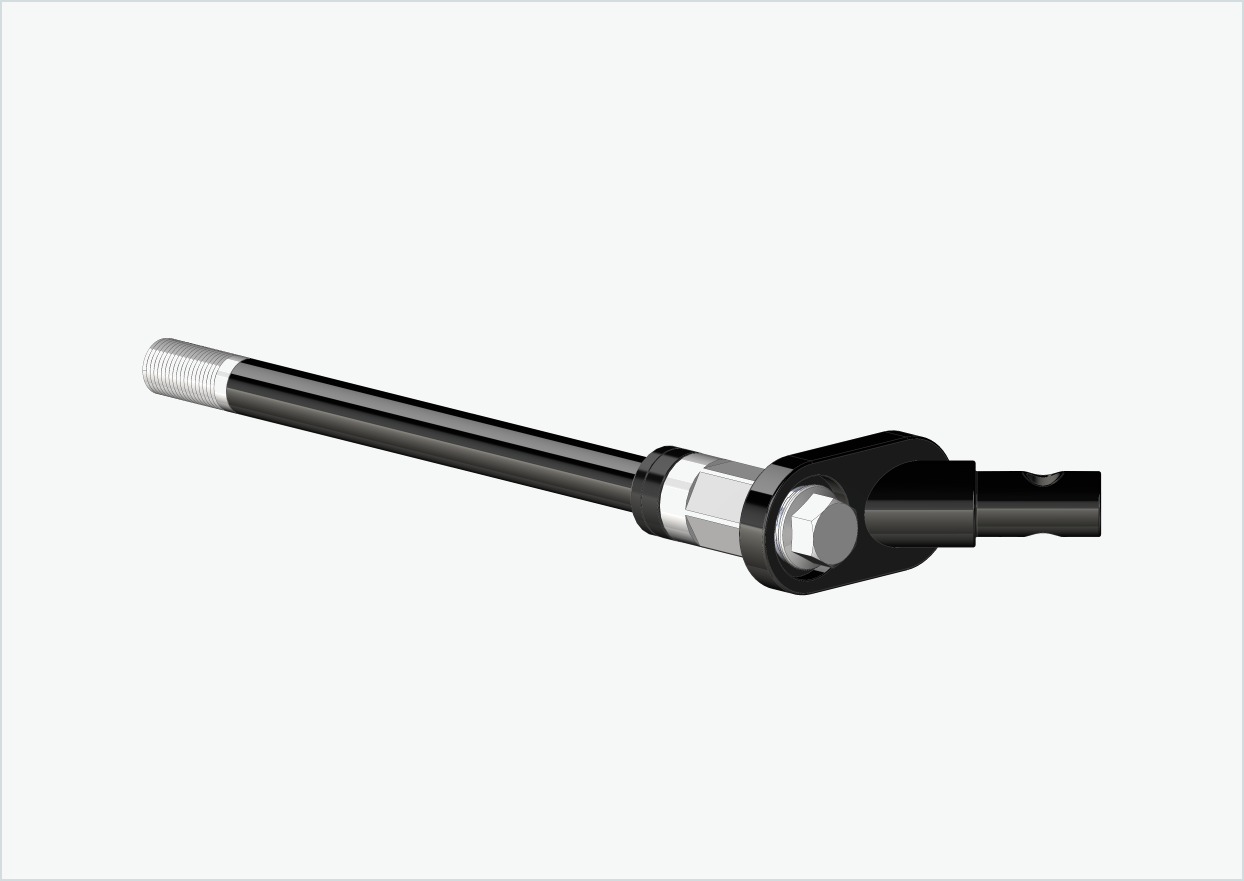

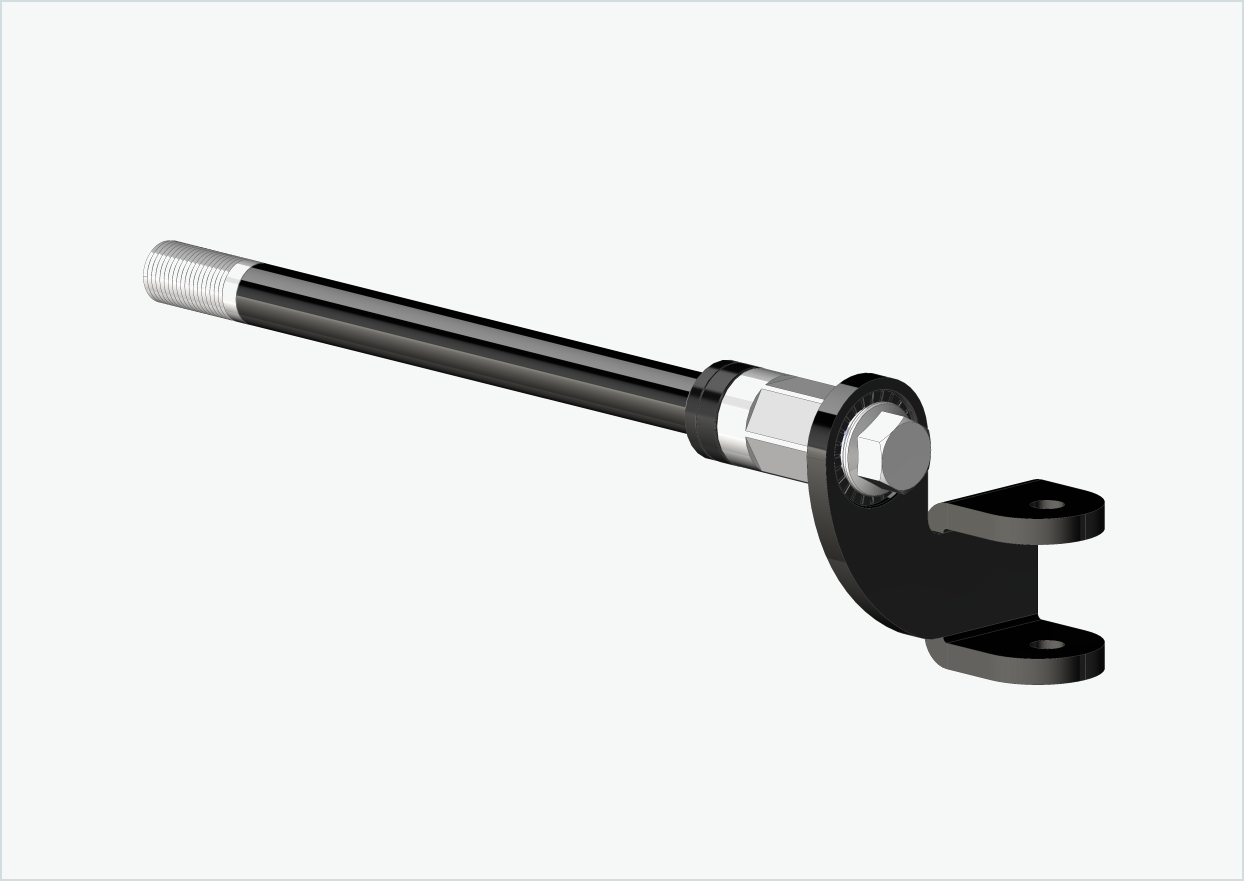

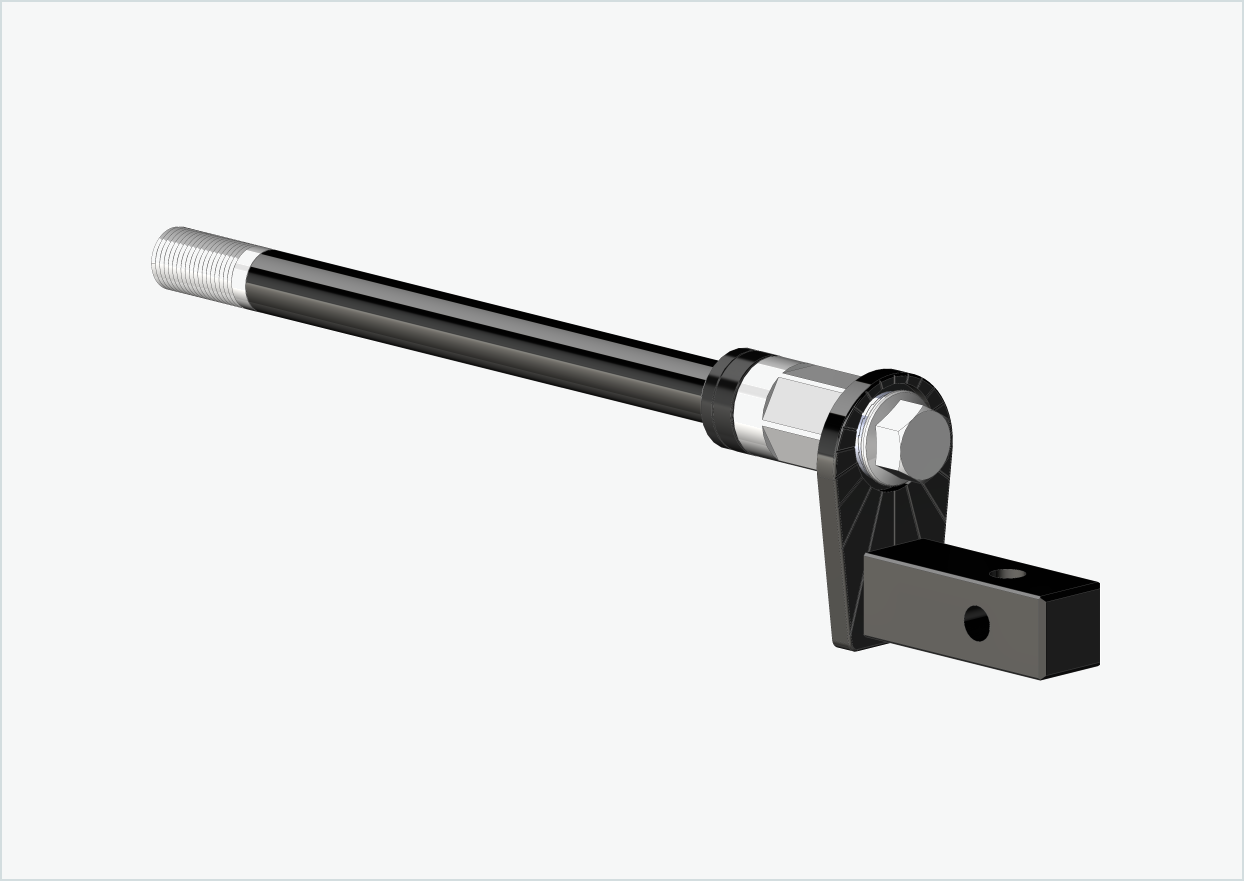

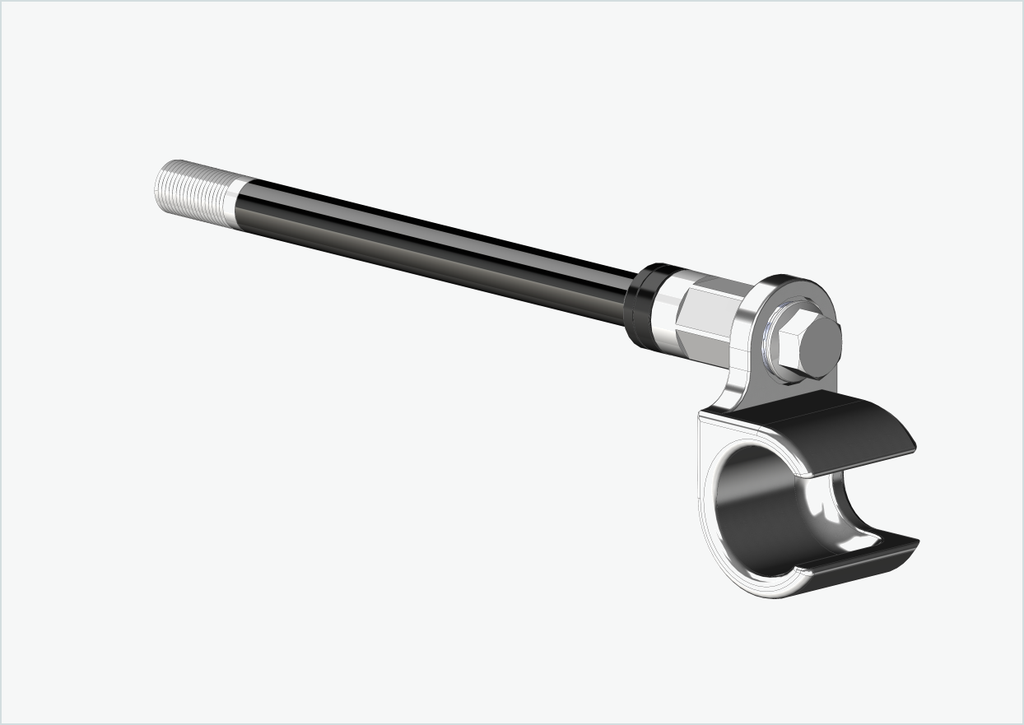

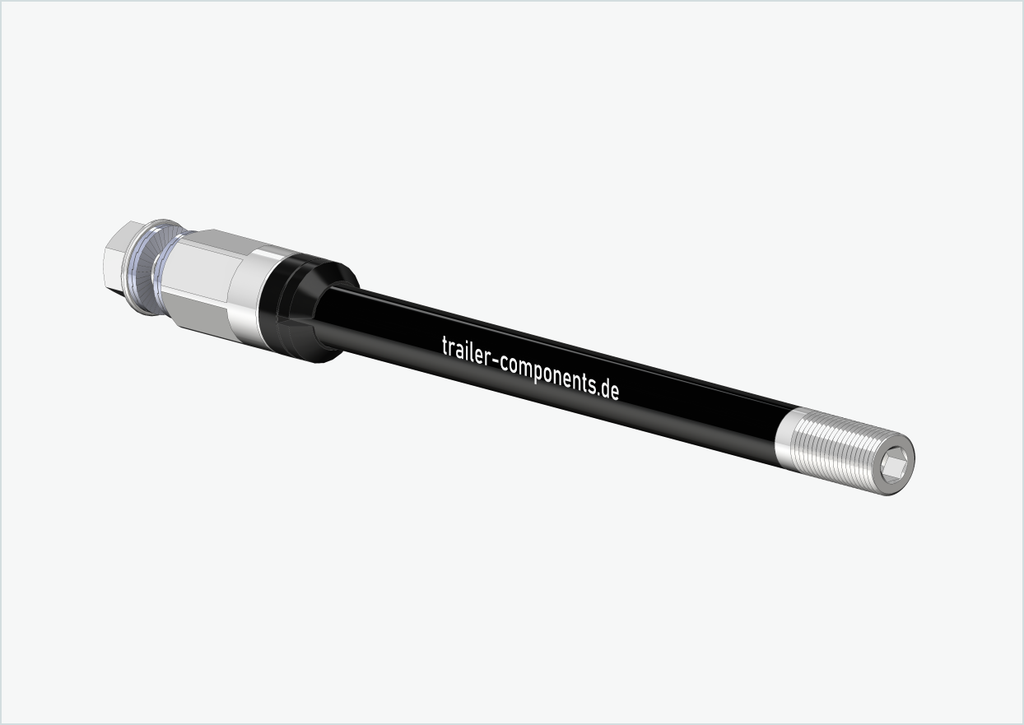

Syntace thru axle (X-12) with universal adapter

suitable for Thule, Qeridoo, Burley, Prophete, Hamax, Trixie and many others

Thread M12 x 1.00 made of titanium Material

Installation lengths: 150mm-229mm

Each of our thru axles is made individually for you. We need the exact installation length [mm] and the thread size (pitch) of your currently installed thru axle.

Download our Measuring template for thru axles as a PDF file.

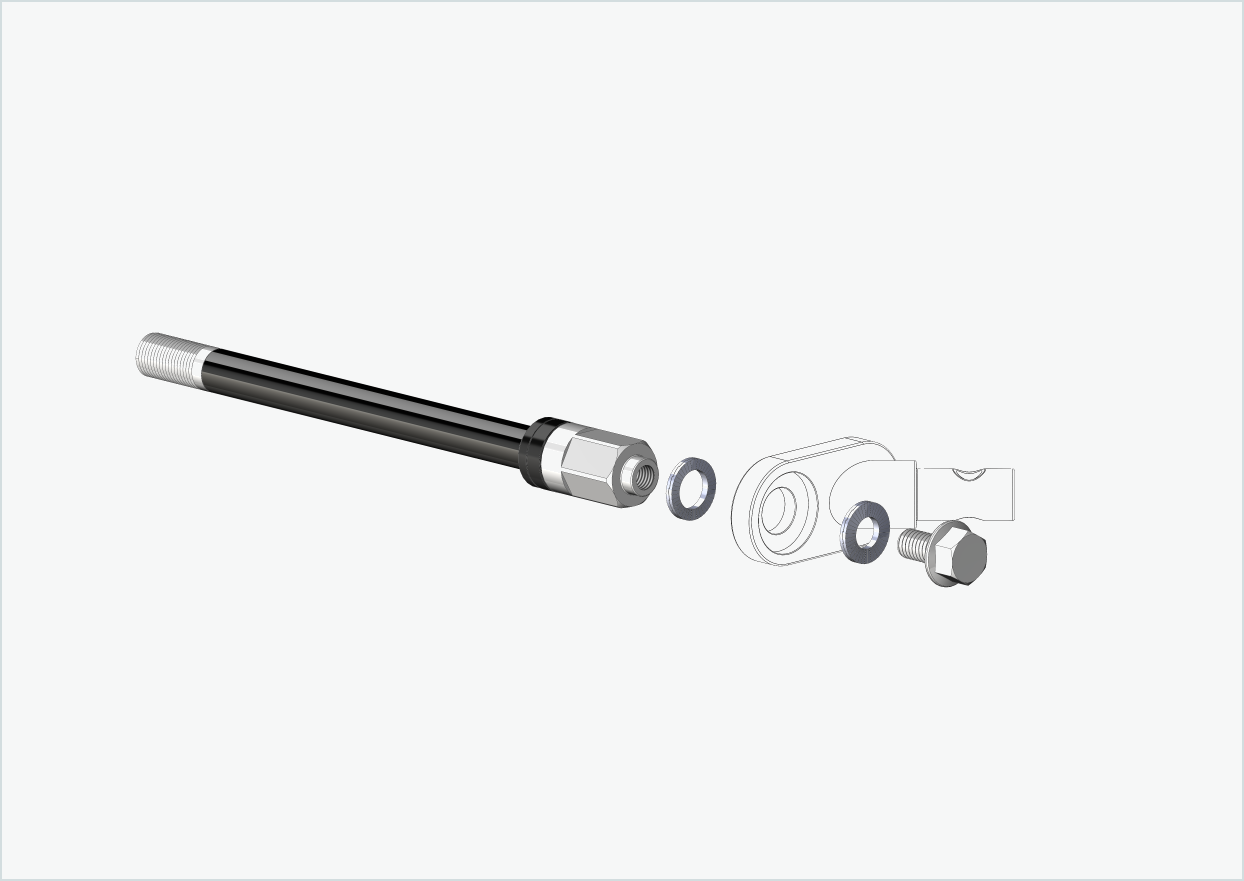

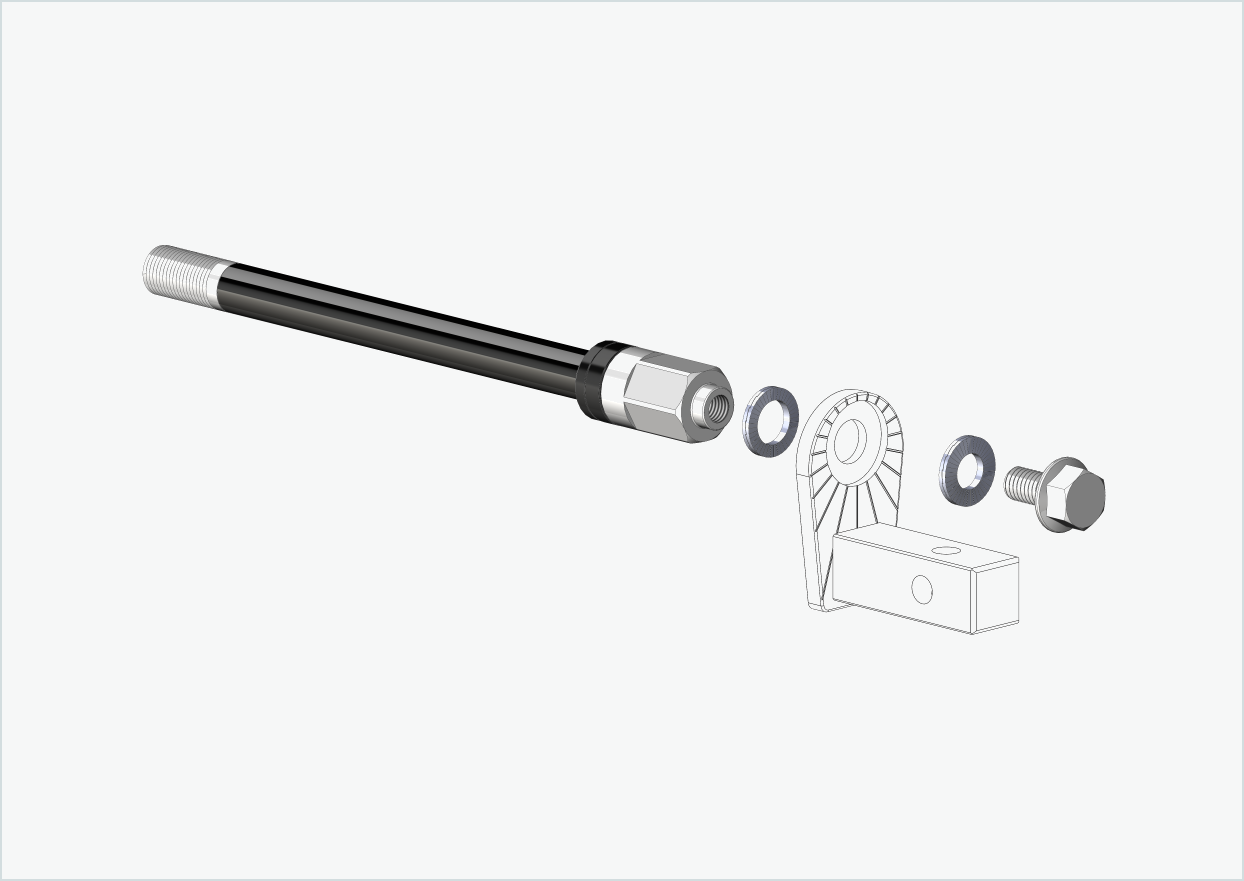

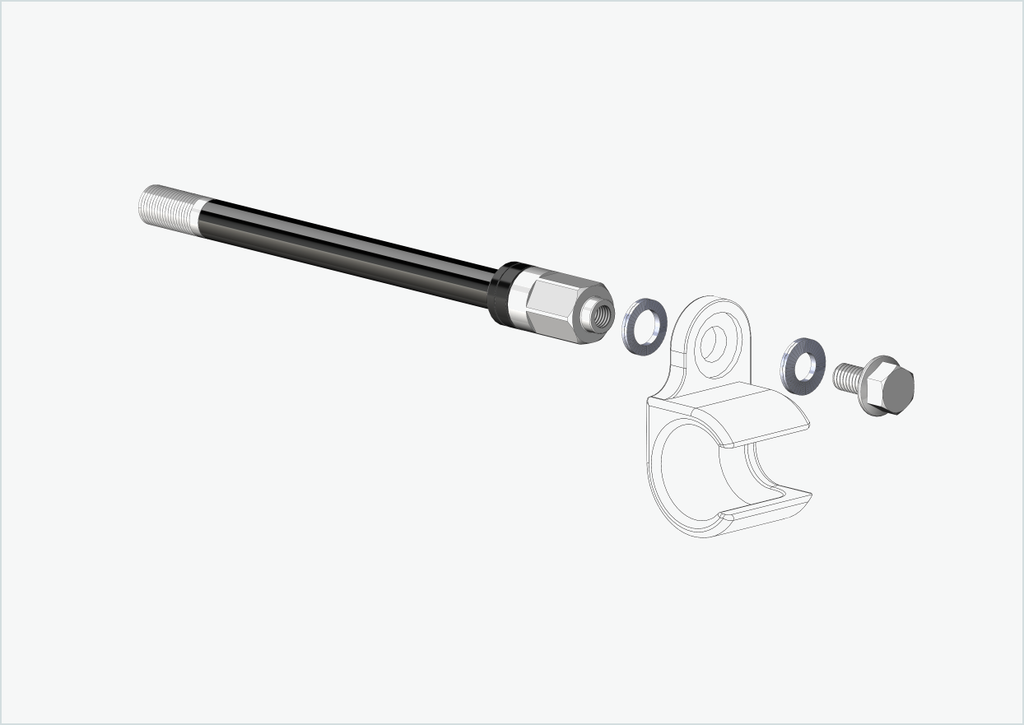

ASSEMBLY INSTRUCTIONS

You can always recognize thru axles with the Syntace system (X-12) by the tapered shape on the head of your thru axle, as shown in the following graphic.



Safety instructions and warnings

! WARNING !

Before you fit our thru axle with adapter, you must determine whether your bike is approved for trailer use. Check the operating instructions for your bike, ask the manufacturer or ask a bike dealer.

The towing bike must be approved for trailer operation. Riding the trailer with a towing bike that has not been approved by the manufacturer can lead to frame breakage or other material problems. This can result in accidents with life-threatening injuries.

If you are not sure how to fit our thru axle with adapter correctly, please contact a specialist workshop.

Our thru axle with adapter must be fitted correctly. An incorrectly fitted thru axle with adapter can come loose while riding and lead to accidents with life-threatening injuries.

You should definitely bear this in mind:

  • Our thru axles with adapter are only approved for bicycles and pedelecs (max. 25 km/h), not for S-pedelecs or e-bikes from 25 km/h!
  • We would like to point out to all dealers and end users that they themselves are responsible for the entire bicycle trailer system and its correct functioning in terms of product liability!
  • It is your responsibility to determine the correct thread size and installation length [mm] of your current thru axle on the wheel. Do not attempt to fit our thru axle with adapter in a different thread size in your rear hub. An incorrect thread size can damage your bike. If you are unsure about the correct thread size and installation length, please contact us by email or phone and we will be happy to help you.
    • cannot be used with bikes made of carbon or with carbon dropouts and carbon rear triangle!
    • Regularly check the correct torque setting and that all components are free of play before using your bike in trailer mode!
    • If you do not have a calibrated torque wrench for fitting our thru axle with adapter, contact a specialist workshop.

    Manufacturer information

    Manufacturer part number (MPN)
    202004XXX10000
    Manufacturer
    Protedac GmbH, Malvenweg 21, 50259 Pulheim, Germany, info@protedac.de
